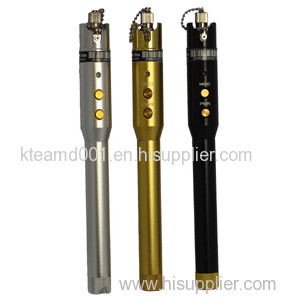

KD-500C Pentype Visual Fault Locator KD-500C manufacturer from China KTEAM DEVELOPMENT LIMITED

Payment Terms:	T/T
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KD-500C

Brand Name: KD

The KD-500C (1mw/5mw/10mw/20mw/30mw)is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routi

The KD-500C (1mw/5mw/10mw/20mw/30mw)is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR

Key Feature
2.5mm universal connector
Operates either in CW or Pulsed
Constant output power
Lower Battery warning
Long battery life (up to 60 hours)
Crash-proof and dust-proof design for laser head
Laser case ground designprevents ESD damage
Burning testing to ensure the reliability.
Portable and rugged, easy to use
Guarantee to CE standards include EMC, EMI, ROHS

Specifications

Type	KD-500C Pen-type Visual Fault Finder
Central Wavelength	650nm+-10nm (635nm can be required on request)
Emitter Type	FP-LD
Output Power	Optional choice for 1mw,5mw,10mw 20mw 30mw on actual needs
Optical Connector	2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
Operating Model	Both CW and Pulse available
Pulse Frequency	2~3Hz
Power Supply	2 AAalkaline batteries
Battery Operating Time	60 hours
Operating Temperature	-10~+45 (^oC)
Storage Temperature	-40~+70 (^oC)
Dimension (mm)	15X180
Weight	120g(Without battery)
